Separatori za ulje i mastiOil & grease separators Na stanjuIn stock Standard EN 858EN 858 standard

Gravitacioni separatoriGravity separators
Sa bajpasom i Bez bajpasaWith bypass & Without bypass

Visokokvalitetni separatori masti i ulja — Klasa I i Klasa II prema EN 858. Za garaže, servise, benzinske pumpe, kuhinje i industrijske objekte. Dostava i montaža širom Srbije. High-quality oil & grease separators — Class I and Class II per EN 858. For garages, service stations, gas stations, kitchens and industrial facilities. Delivery and installation across Serbia.

Izaberite tip separatoraChoose separator type

Kliknite na karticu za specifikacije i detaljeClick a card for specifications and details

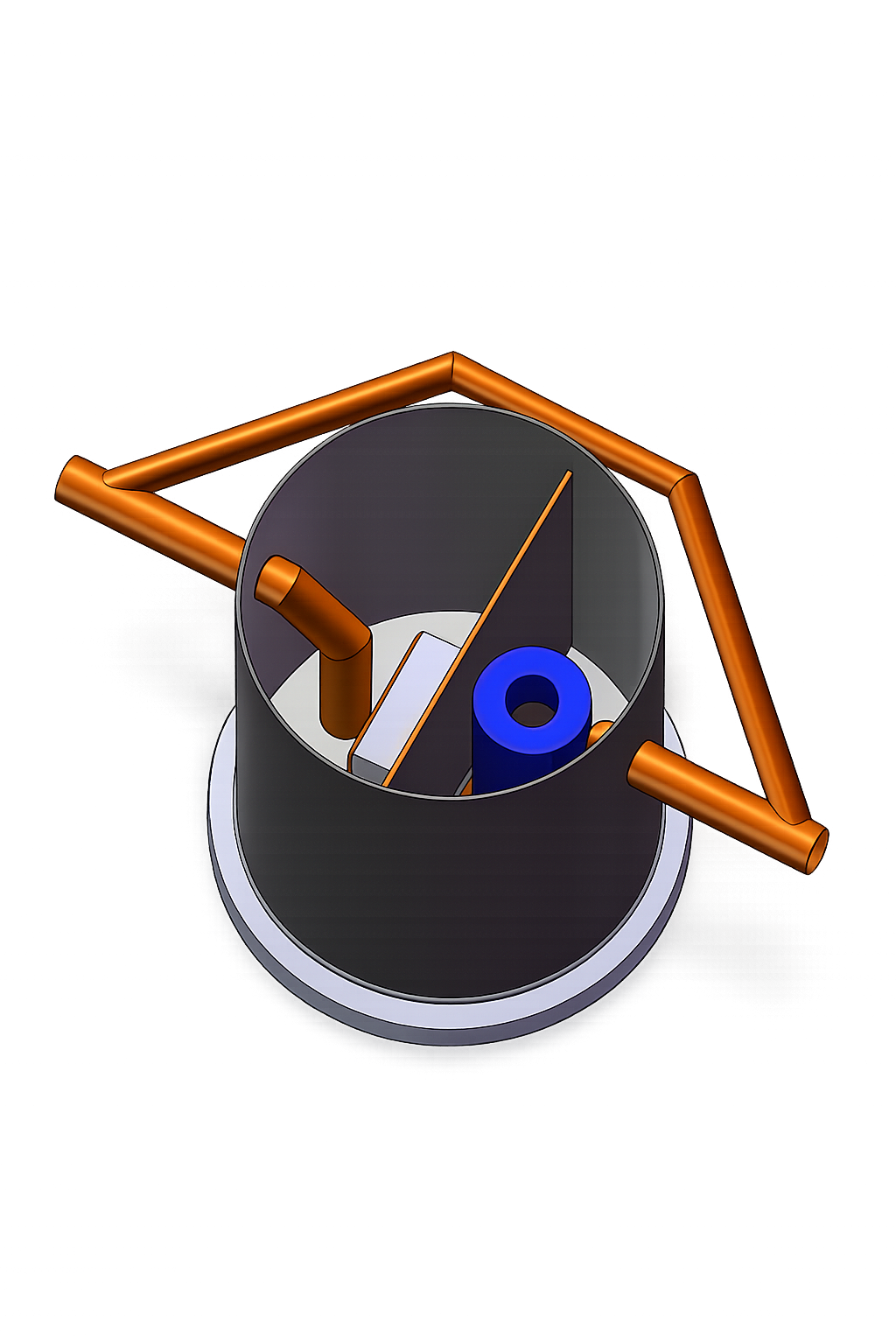

Gravitacioni separator sa bajpasom – Gravity separator with bypass – Rezervoari Srbija

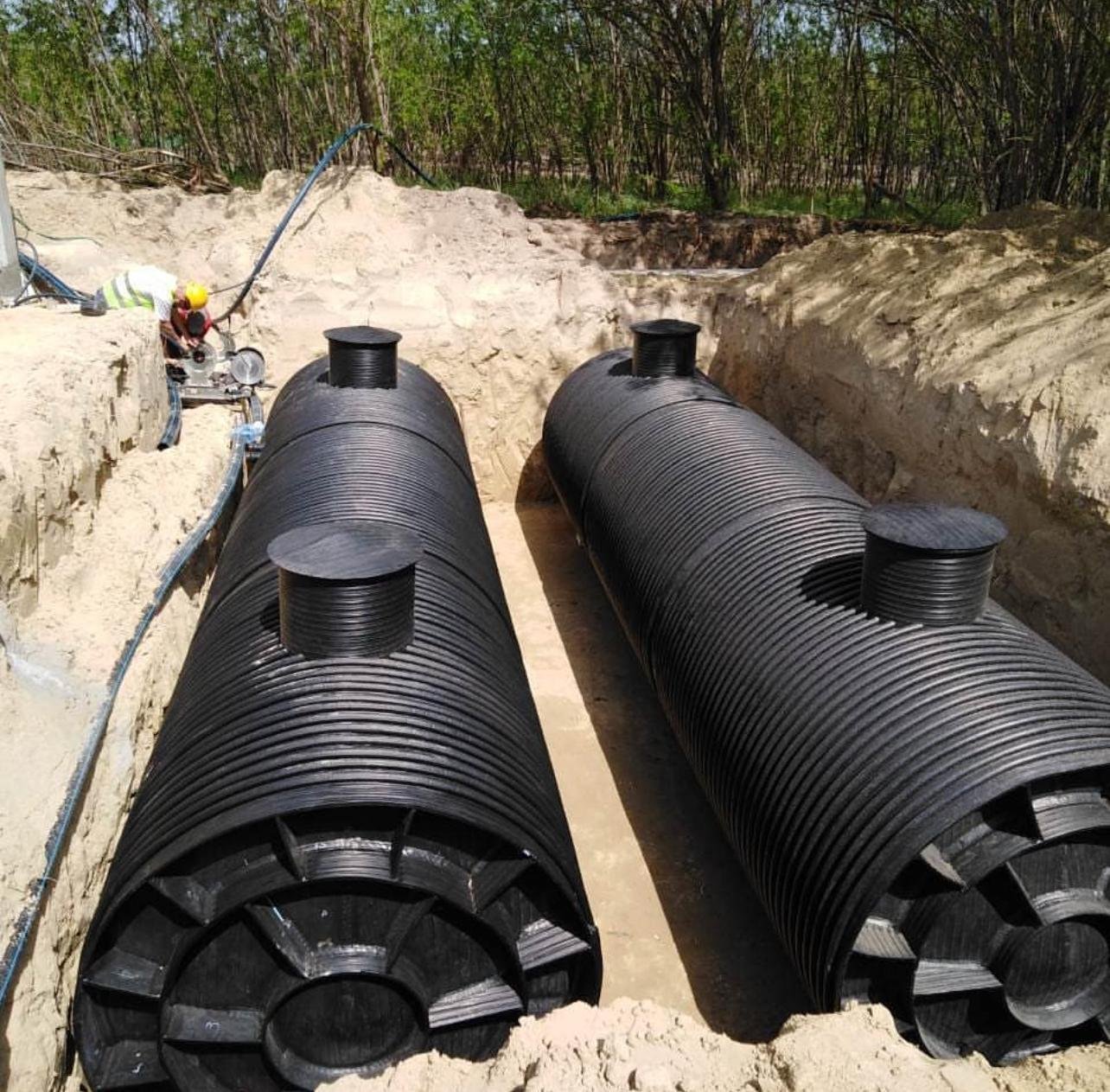

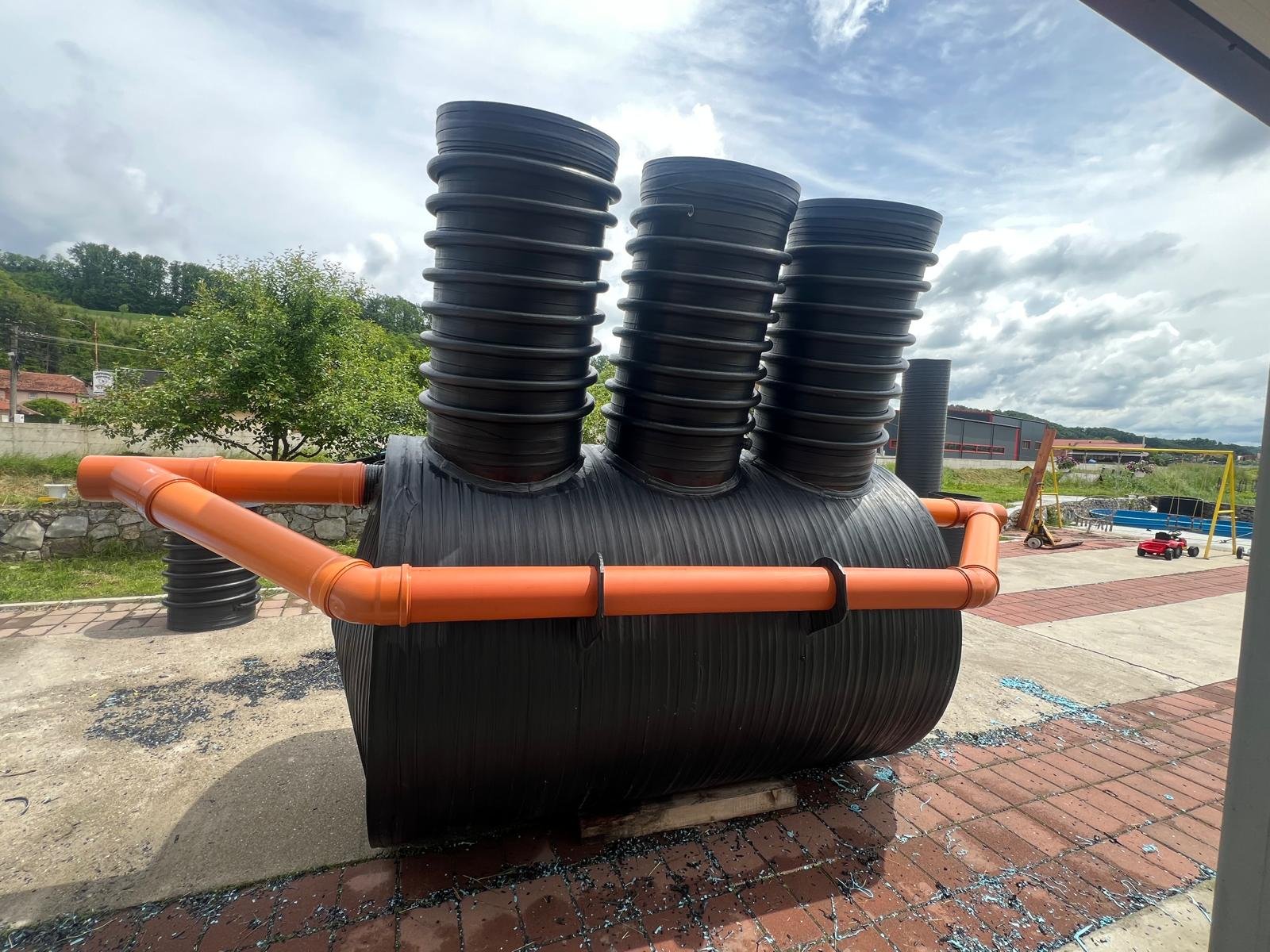

Separator sa bajpasomSeparator with bypass

Klasa I / PrioritetClass I / Priority

NS klasaNS class

NS 2–NS 250

EfikasnostEfficiency

≥ 99 %

StandardStandard

EN 858-1

Bajpas kanal za vršni protokBypass channel for peak flow intake
Štiti separator od hidrauličkog udaraProtects separator from hydraulic shock
Preporučeno za benzinske pumpe i autopraoniceRecommended for gas stations and car washes
Integrisan koalescentni lamelarni filterIntegrated coalescing lamella filter

Zahtevaj ponuduRequest a quote

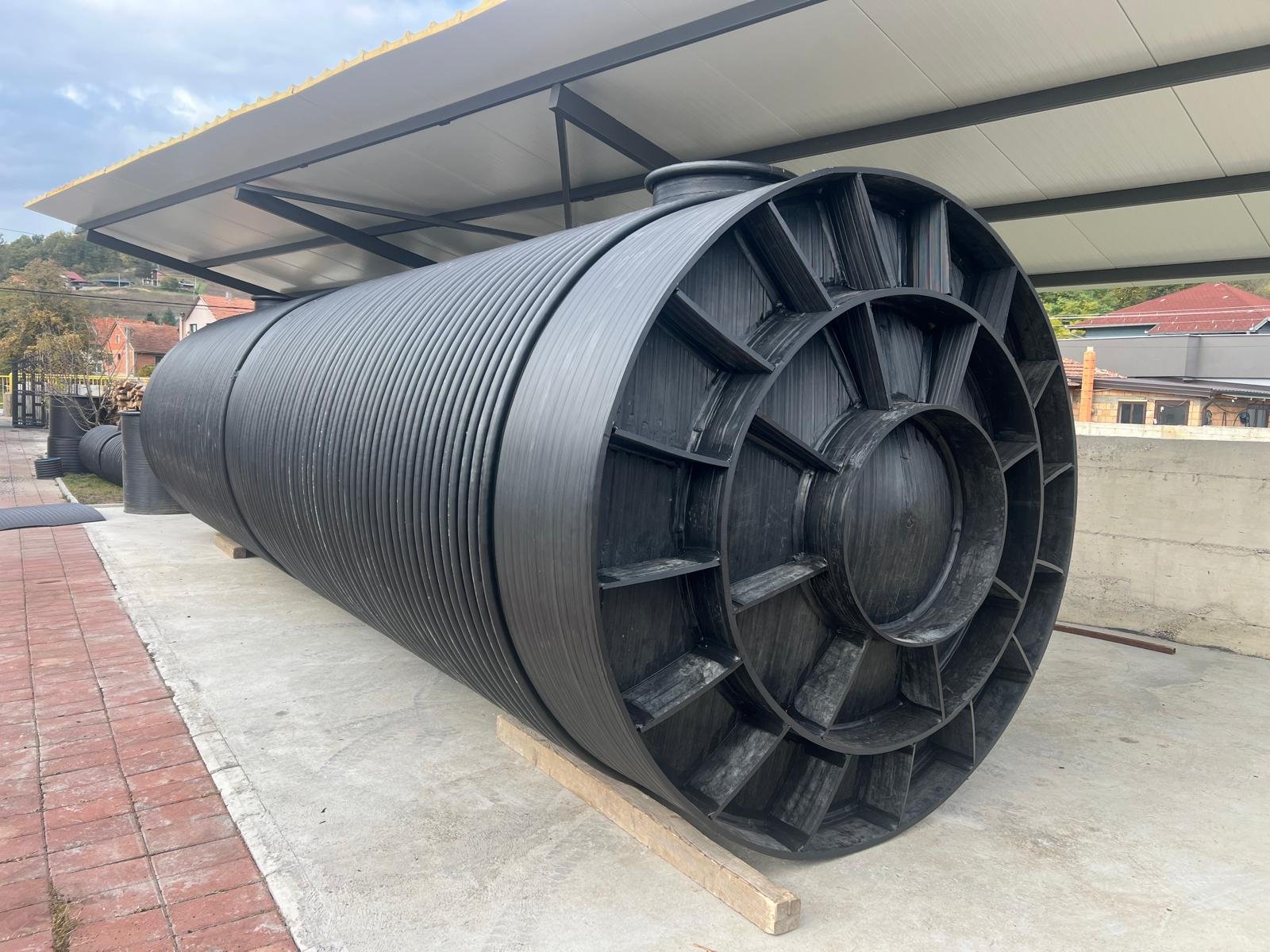

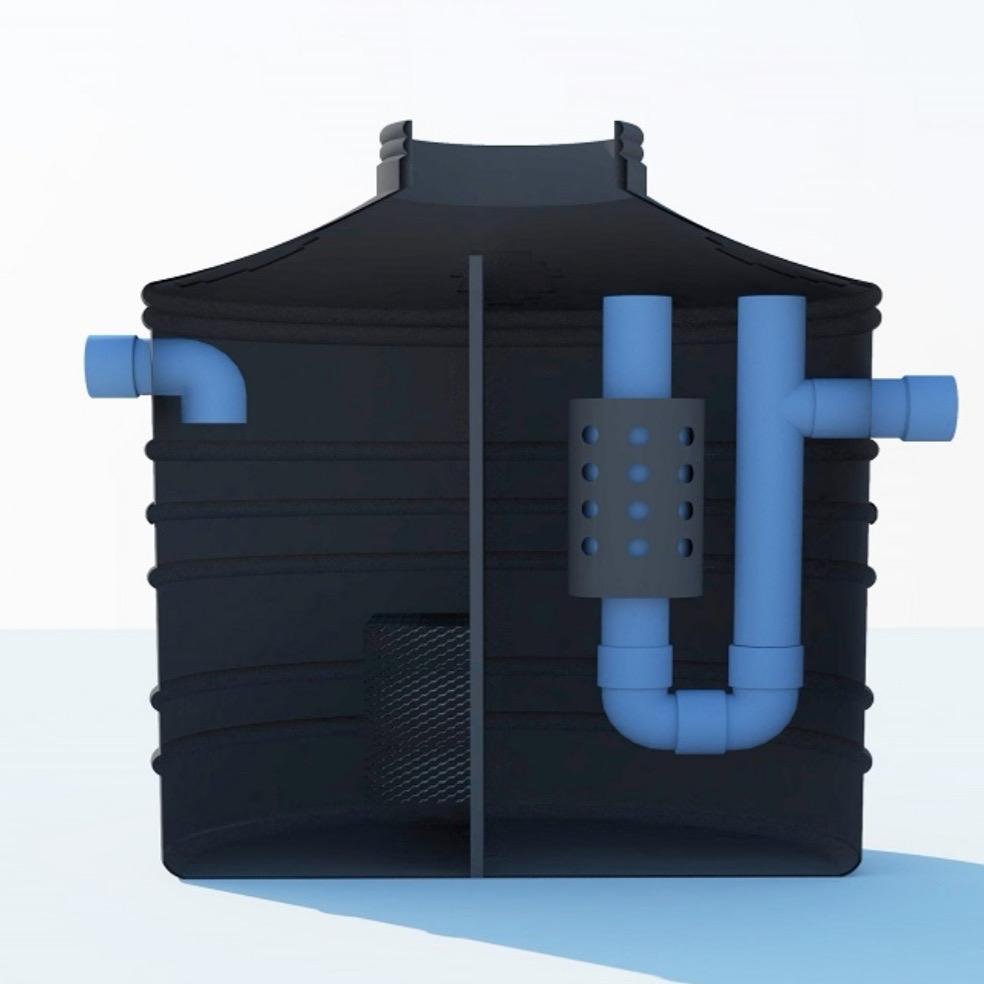

Gravitacioni separator bez bajpasa – Gravity separator without bypass – Rezervoari Srbija

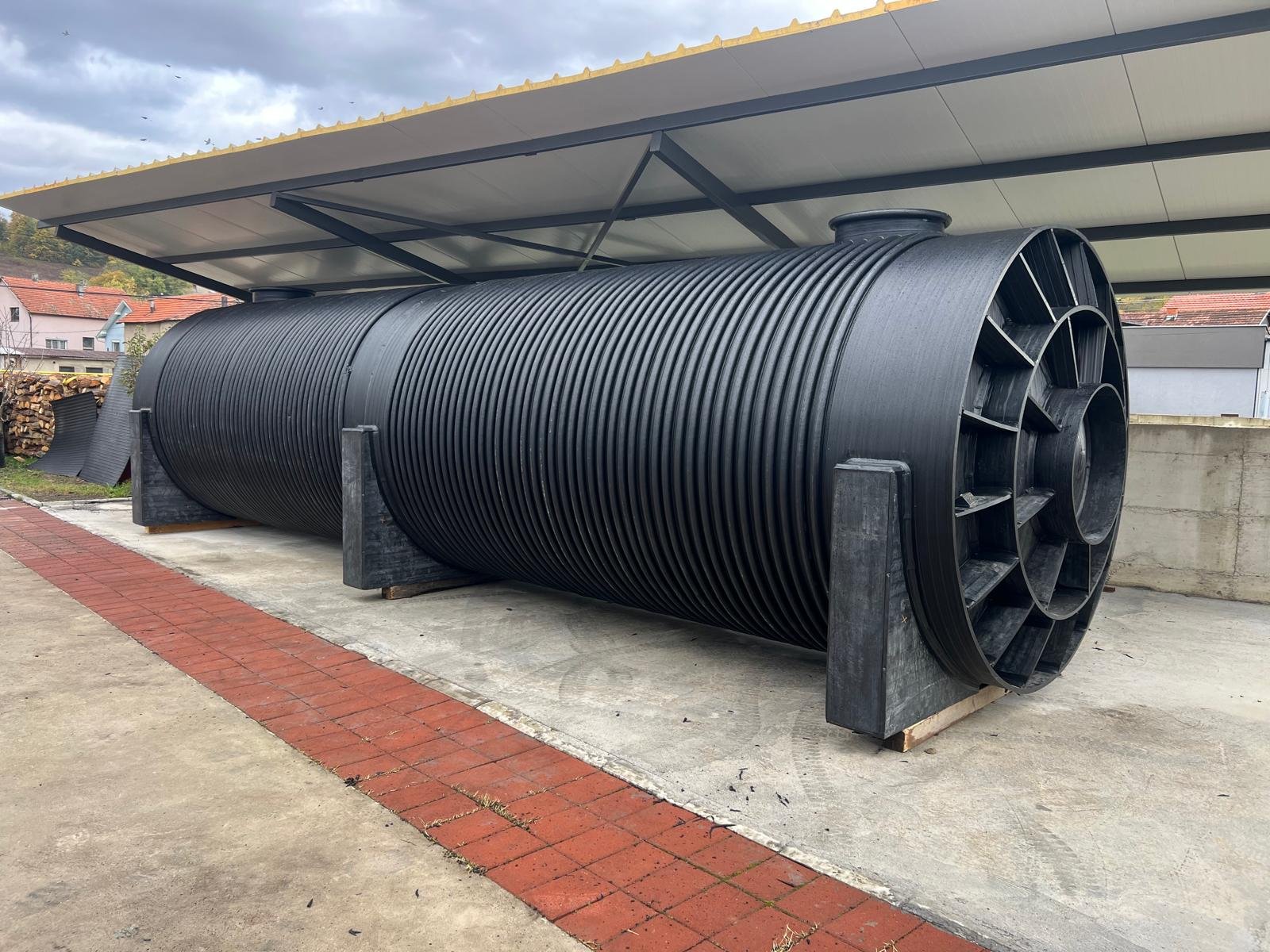

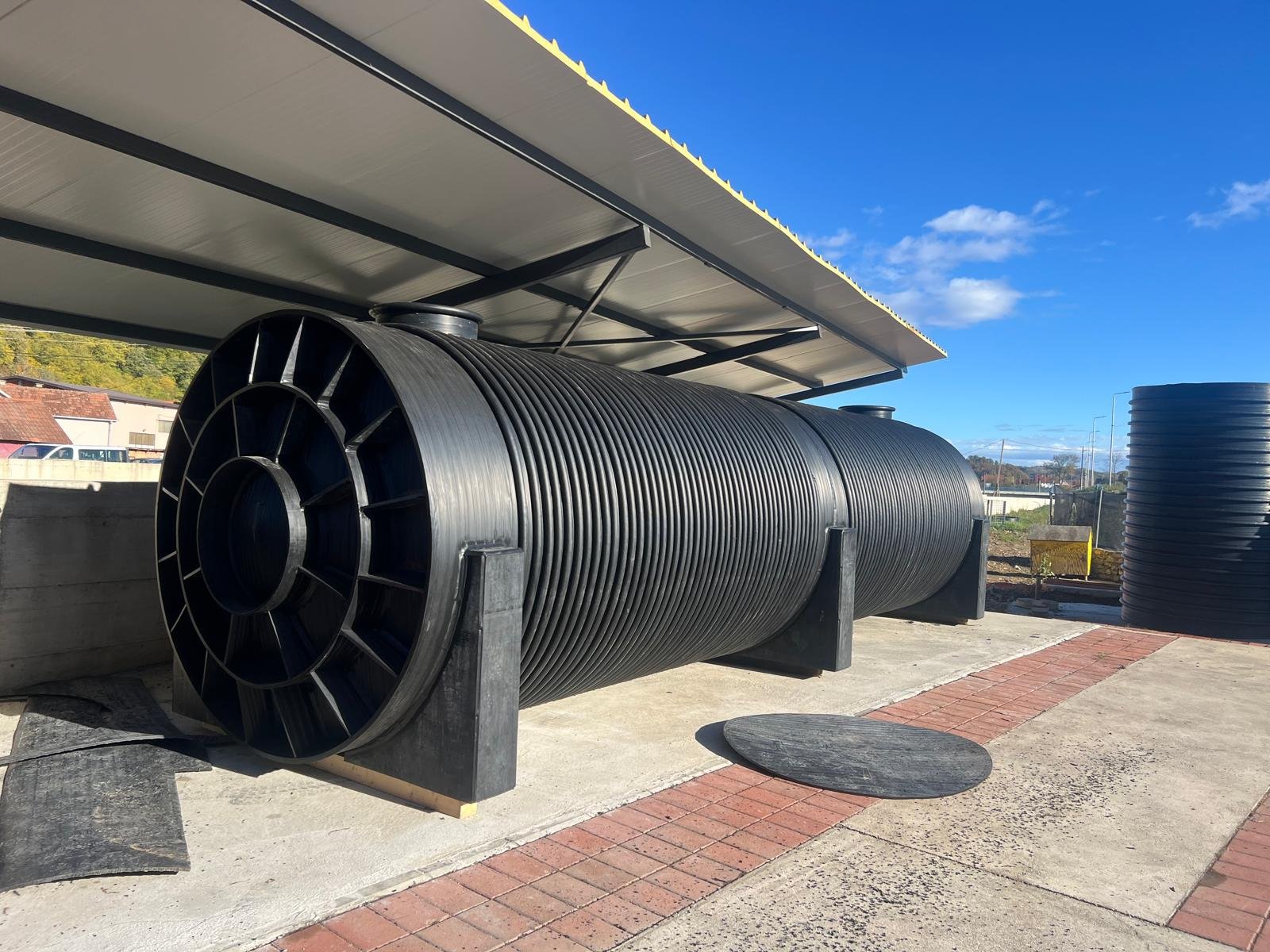

Separator bez bajpasaSeparator without bypass

Klasa II / StandardClass II / Standard

NS klasaNS class

NS 2–NS 250

EfikasnostEfficiency

≥ 95 %

StandardStandard

EN 858-2

Kompaktnija i ekonomičnija izvedbaMore compact and economical design
Idealno za kuhinje, restorane i ugostiteljstvoPerfect for kitchens, restaurants, catering facilities
Jednostavno redovno pražnjenje i servisiranjeEasy regular emptying and servicing
Moguća ugradnja pod zemlju ili kao slobodno-stojećiCan be installed underground or as freestanding

Zahtevaj ponuduRequest a quote

Tip separatoraSeparator type

Gravitacioni separatori masti i ulja — sa bajpasomOil & grease separator — with bypass

Sa bajpasomWith bypass

Prioritetna izvedba — sa bajpas kanalomPriority design — with bypass channel

Separator sa bajpasom je projektovan za lokacije sa promenljivim protokom — benzinske pumpe, servisi i autopraonice. Bajpas kanal apsorbuje hidrauličke udare pri vršnim protocima i štiti koalescentni paket od preopterećenja. The separator with bypass is designed for locations with variable flows — gas stations, vehicle service centers and car washes. The bypass channel absorbs hydraulic shocks during peak flow and protects the coalescing pack from overloading.

NS klasaNS class

NS 2–250

ProtokNominal flow

2–250 L/s

EfikasnostEfficiency

≥ 99 %

MaterijalMaterial

Ojačana konstrukcija

StandardStandard

EN 858-1

GarancijaWarranty

5 godina5 years

Bajpas kanal štiti lamelarni paket od hidrauličkog udaraBypass channel protects lamella pack from hydraulic shock
Integrisan koalescentni filtar paket (klasa I)Integrated coalescing lamella pack (Class I)
Senzor nivoa ulja i automatski zatvarač (opcija)Oil level sensor and automatic closer (optional)
Jednodelna posuda — bez curenja, laka montažaOne-piece vessel — leak-free, easy installation
Proizvodnja po meri — nestandardni priključci i NS klaseCustom manufacturing — non-standard connections and NS classes

Zahtevaj ponuduRequest a quote Pozovite odmahCall now

ili izaberite bez bajpasaor choose without bypass

Tip separatoraSeparator type

Gravitacioni separatori masti i ulja — bez bajpasaOil & grease separator — without bypass

Standardna izvedba — bez bajpas kanalaStandard design — without bypass channel

Separator bez bajpasa je kompaktnija i ekonomičnija izvedba namenjena objektima sa ujednačenim manjim protokom — restorani, kuhinje, sudopere i manji radionici. Cela zapremina otpadne vode prolazi kroz separator, obezbeđujući visoku efikasnost tretmana. The without-bypass separator is a more compact and economical design intended for facilities with consistent lower flows — restaurants, kitchens, dishwashing areas and small workshops. All wastewater passes through the separator chamber, ensuring high treatment efficiency.

NS klasaNS class

NS 2–250

ProtokNominal flow

2–250 L/s

EfikasnostEfficiency

≥ 95 %

MaterijalMaterial

Ojačana konstrukcija

StandardStandard

EN 858-2

GarancijaWarranty

5 godina5 years

Ekonomičnija izvedba — niža cena, jednostavnija ugradnjaMore economical design — lower cost, simpler installation
Cela zapremina otpadnih voda tretira se kroz separatorAll wastewater volume is treated through the separator
Integrisan barijerni filter za masti (Klasa II)Integrated barrier grease filter (Class II)
Lako servisiranje — revizion i poklopac Ø600 mmEasy servicing — revision cover Ø600 mm
Dostupan kao podzemni ili slobodno-stojeći modelAvailable as underground or freestanding model

Zahtevaj ponuduRequest a quote Pozovite odmahCall now

Bez bajpasaWithout bypass

5 godina garancije5 year warranty

na materijalon material

StandardEN 858

Klasa I & IIclass I & II

Brza isporukaFast delivery

cela Srbijaall Serbia

Proizvodnja po meriCustom manufacturing

nestandardne NS klasenon-standard NS classes

Detaljan opisDetailed description

Sve što treba da znateEverything you need to know

Visokogustinski specijalni polimerspecial polymer

Svi naši separatori su izrađeni od savremenog materijala pomoću rotomoldinga. Jednodelna konstrukcija bez zavarivanih ili lepljenih spojeva eliminiše rizik od curenja. Materijal je hemijski inertan na ulja, masti, goriva i sredstva za čišćenje.All our separators are manufactured from a durable material using rotational molding. The one-piece construction without welded or glued joints eliminates the risk of leaks. The material is chemically inert to oils, greases, fuels and cleaning agents.

Telo separatora zadovoljava zahteve EN 858. Unutrašnji elementi su od otpornog materijala otpornih na ugljovodonike.The separator body meets EN 858 requirements. Internal components are made of resistant materials resistant to hydrocarbons.

Otpornost na ugljovodonikeHydrocarbon resistance

Materijal ne bubri niti se degradira u kontaktu sa uljima, gorivima i mastima.The material does not swell or degrade when in contact with oils, fuels and greases.

Pouzdano odvajanje masti i uljaReliable oil and grease separation

Projektovano za stabilan rad i lako održavanje u zahtevnim uslovima.Designed for stable operation and easy maintenance in demanding conditions.

Temperaturna otpornostTemperature resistance

Stabilan od -20°C do +60°C. Pogodan za spoljnu i podzemnu ugradnju.Stable from -20°C to +60°C. Suitable for outdoor and underground installation.

Separator sa bajpasom — NS 2 do NS 250Separator with bypass — NS 2 to NS 250

Prioritetna izvedba sa bajpas vodom za vršne protokePriority design with bypass overflow for peak flows

Bajpas se aktivira pri protocima koji prelaze projektovani NS separatora. Preusmerena višak vode zaobilazi koalescentni paket i odlazi u izlaznu cev, čime se lamelarni paket štiti od hidrauličkog preopterećenja koje bi umanjilo efikasnost prečišćavanja.The bypass activates at flows that exceed the separator's nominal NS rating. The redirected excess water bypasses the coalescing pack and is discharged to the outlet pipe, protecting the lamella pack from hydraulic overload that would impair treatment performance.

Raspon vrednostiRange of values

NS klasaNS class	NS 2–NS 250
Projektni protokNominal flow	2–250 L/s
Bajpas protokBypass flow	do 10x NSup to 10x NS
KlasaClass	Klasa I (EN 858-1)Class I (EN 858-1)
PriključciConnections	Ø125–Ø600

Standardna opremaStandard equipment

Koalescentni lamelarni paket (Klasa I)Coalescing lamella pack (Class I)
Integrisani bajpas prelivačIntegrated bypass overflow
Inspekcioni šaht Ø600 mmRevision manhole Ø600 mm
Ulaz/Izlaz DN 100/150 (opcija DN 200+)Inlet/Outlet DN 100/150 (option DN 200+)
Senzor nivoa ulja (opcija)Oil level sensor (optional)

Tabela dimenzija — separatori masti i ulja Dimensions table — oil & grease separators

Protok (l/s)Flow rate (l/s)	Zapremina (m³)Volume (m³)	Dimenzije (R×L) mmDimensions (D×L) mm	Priključne cevi (Ø)Connections (Ø)
2	1	1000×1200	Ø125
5	2	1000×2500	Ø125
10	3	1200×2600	Ø160
15	5	1200×4500	Ø200
20	8	1600×4000	Ø200
30	12	1600×6000	Ø250
50	15	1600×7500	Ø300
80	20	2400×5000	Ø300
100	30	2400×6800	Ø400
150	36	2400×8000	Ø500
200	40	2400×8800	Ø600
250	50	2400×11100	Ø600

Separator bez bajpasa — NS 2 do NS 250Separator without bypass — NS 2 to NS 250

Standardna kompaktna izvedba za ujednačene manje protokeStandard compact design for consistent lower flows

Bez bajpasa — sav protok otpadnih voda prolazi kroz separator i barijerni filter. Ovo garantuje visoku i stabilnu efikasnost tretmana tokom radnog ciklusa, pod uslovom da je separator ispravno dimenzionisan za maksimalne projektovane protoke.Without a bypass — the entire volume of wastewater must pass through the separator and barrier filter. This guarantees high and consistent treatment efficiency throughout the operating cycle, provided the separator is correctly sized for the peak design flow.

Raspon vrednostiRange of values

NS klasaNS class	NS 2–NS 250
Projektni protokNominal flow	2–250 L/s
KlasaClass	Klasa II (EN 858-2)Class II (EN 858-2)
EfikasnostEfficiency	≥ 95 %
PriključciConnections	Ø125–Ø600

Standardna opremaStandard equipment

Barijerni filter za masnoće (Klasa II)Barrier grease filter (Class II)
Inspekcioni šaht Ø600 mmRevision manhole Ø600 mm
Ulaz/Izlaz DN 100/150Inlet/Outlet DN 100/150
Košasti filter za krupne česticeBasket filter for coarse particles
Ventilacioni otvor Ø125 mmVentilation opening Ø125 mm

Tabela dimenzija — separatori masti i ulja Dimensions table — oil & grease separators

Protok (l/s)Flow rate (l/s)	Zapremina (m³)Volume (m³)	Dimenzije (R×L) mmDimensions (D×L) mm	Priključne cevi (Ø)Connections (Ø)
2	1	1000×1200	Ø125
5	2	1000×2500	Ø125
10	3	1200×2600	Ø160
15	5	1200×4500	Ø200
20	8	1600×4000	Ø200
30	12	1600×6000	Ø250
50	15	1600×7500	Ø300
80	20	2400×5000	Ø300
100	30	2400×6800	Ø400
150	36	2400×8000	Ø500
200	40	2400×8800	Ø600
250	50	2400×11100	Ø600

Benzinske pumpe i servisiGas stations & service centers

Obavezna ugradnja po propisima. Separator sa bajpasom se preporučuje zbog oluja i naglih vršnih protoka sa parking prostora.Mandatory installation per legal regulations. Separator with bypass is recommended due to stormwater surges from parking areas and forecourts.

Autopraonice i radioniceCar washes & workshops

Visoki protoci sa deterdžentima i uljima zahtevaju separator sa bajpasom NS 10–50 sa integrisanim peskolovom.High flows with detergents and oils require a bypass separator NS 10–50 with integrated sand trap.

Kuhinje i ugostiteljstvoKitchens & hospitality

Separatori bez bajpasa NS 1–7 za restorane i komercijalne kuhinje — štite kanalizaciju od masti.Without-bypass separators NS 1–7 for restaurants and commercial kitchens. Protects sewer lines from grease.

Industrijski pogoniIndustrial plants

Separatori sa bajpasom NS 20–100 za teške radionice, mašinsku obradu i hemijsku industriju.Bypass separators NS 20–100 for heavy machinery workshops, mechanical engineering and chemical industry.

Zaštita životne sredine i usklađenostEnvironmental protection & compliance

Srpski i EU propisi zahtevaju sertifikovane separatore za otpadne vode koje sadrže ulja. Naši separatori ispunjavaju standarde potrebne za prijavu nadležnim službama.Serbian and EU regulations require certified separators for discharges containing oils. Our separators meet the standards required for reporting to water authorities.

Koja je razlika između separatora sa i bez bajpasa?What is the difference between separators with and without bypass?

Separator sa bajpasom ima dodatni kanal koji preusmerava vršne protoke i štiti lamelarni paket — potreban je tamo gde postoji oborinska voda. Separator bez bajpasa je kompaktniji i jeftiniji, ali svaka voda prolazi kroz separator — preporučuje se za kuhinje i objekte sa stabilnim manjim protokom.A bypass separator has an additional channel that takes peak flows and protects the lamella pack — required where stormwater is present. A without-bypass separator is more compact and economical, but all water must pass through the separator chamber — recommended for kitchens and facilities with stable, lower flows.

Kako se bira NS klasa separatora?How is the NS class of a separator chosen?

NS se bira na osnovu projektovanog protoka otpadnih voda na lokaciji, gustine ulja i akceleracionog koeficijenta. Naš tim radi besplatnu tehničku procenu i preporučuje odgovarajuću NS klasu.The NS is selected based on the design wastewater flow at your site, oil density and acceleration coefficient. Our team performs a free technical assessment and recommends the appropriate NS class.

Da li separator treba biti ukopan?Does the separator need to be buried?

Ne nužno. Postoje podzemni i slobodnostojeći modeli. Izbor zavisi od prostornih i hidrauličkih uslova.Not necessarily. There are underground and freestanding models. The choice depends on spatial and hydraulic conditions.

Koliko često treba isprazniti separator?How often should the separator be emptied?

Pražnjenje se obavlja kada nivo ulja dostigne 80% zapremine kolektora — obično na 6–12 meseci. Pražnjenje mora obaviti ovlašćeni sakupljač uljane otpada.Emptying is performed when the oil level reaches 80% of the collection chamber capacity — typically every 6 to 12 months. Emptying must be carried out by authorized oil waste collectors.

Koju garanciju dajete i da li vršite montažu?What warranty do you provide and do you perform installation?

5 godina na materijal i integritet posude. Naš tim obezbeđuje dostavu i montažu širom Srbije i izdaje svu neophodnu dokumentaciju za prijavu nadležnim organima.5 years on material and vessel integrity. Our team provides delivery and installation across Serbia and issues the documentation required for reporting to the water inspectorate.
